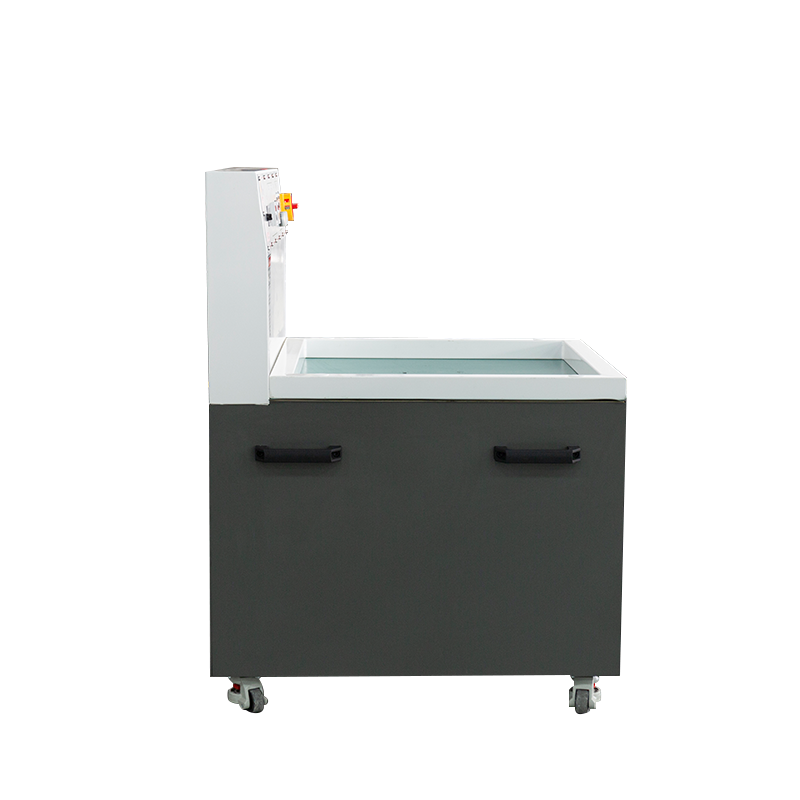

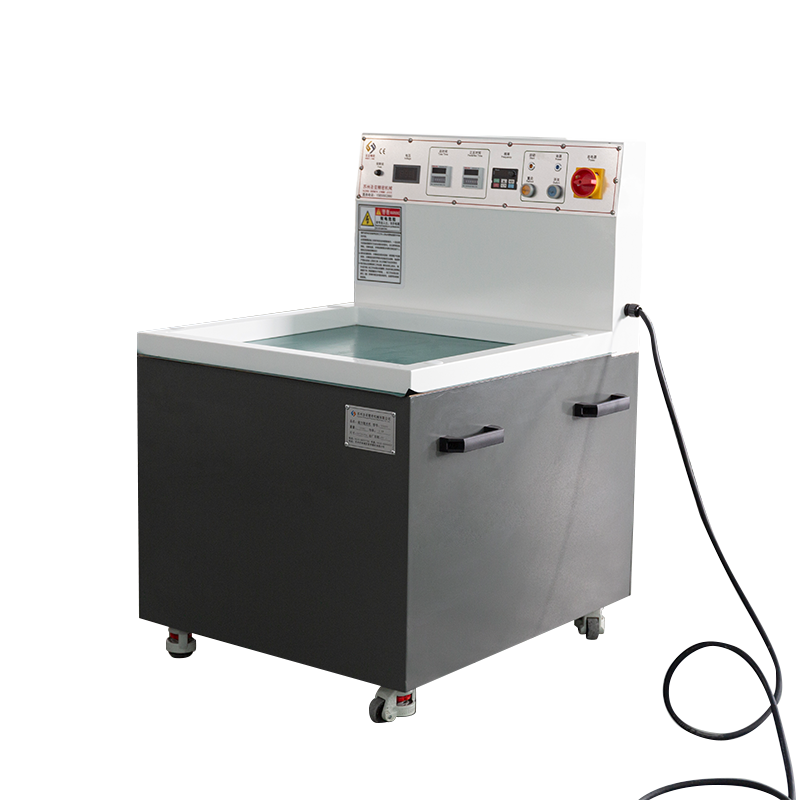

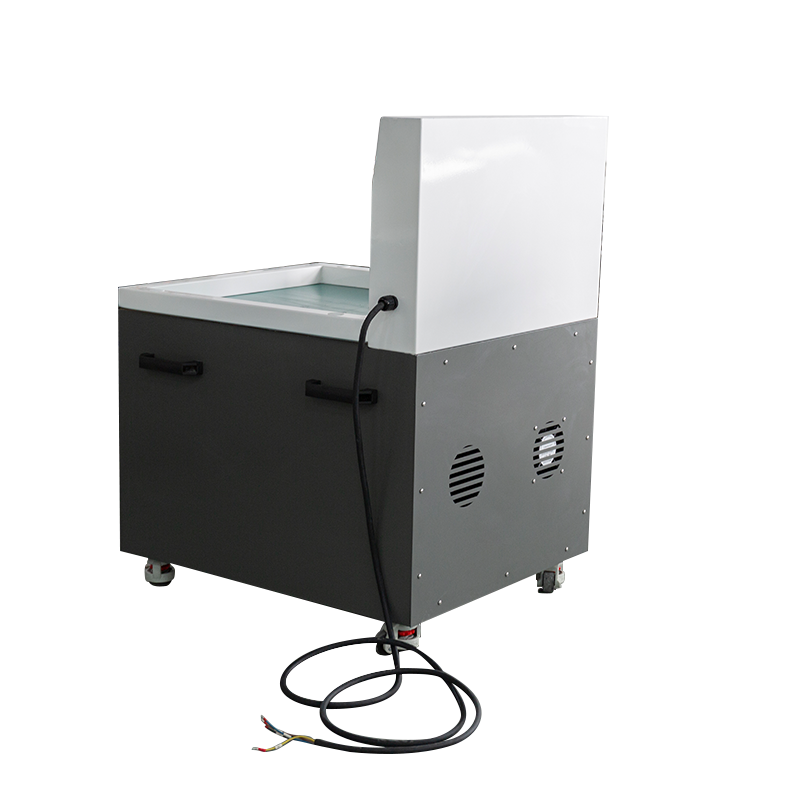

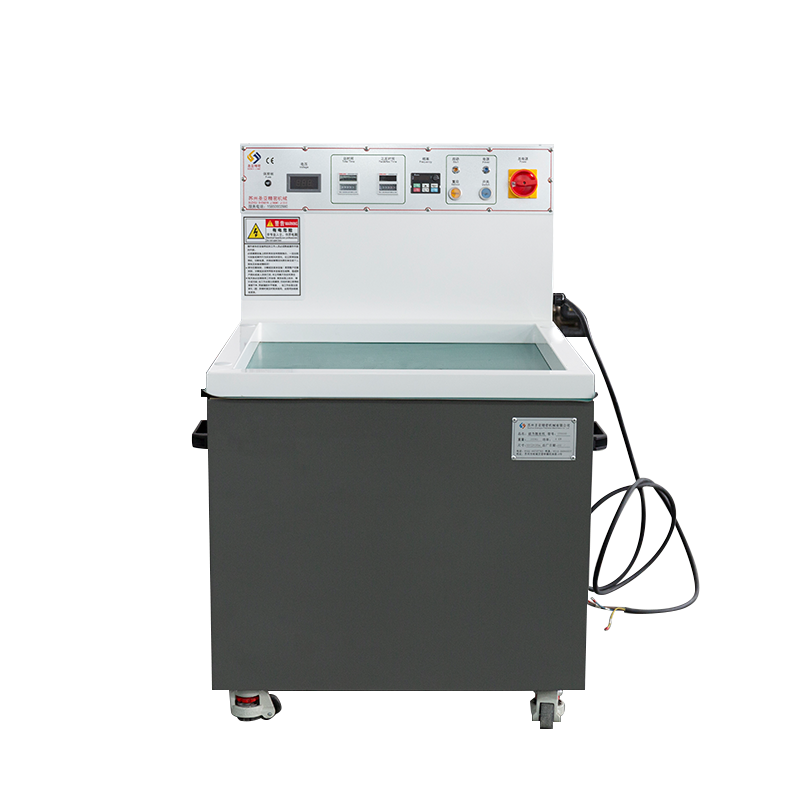

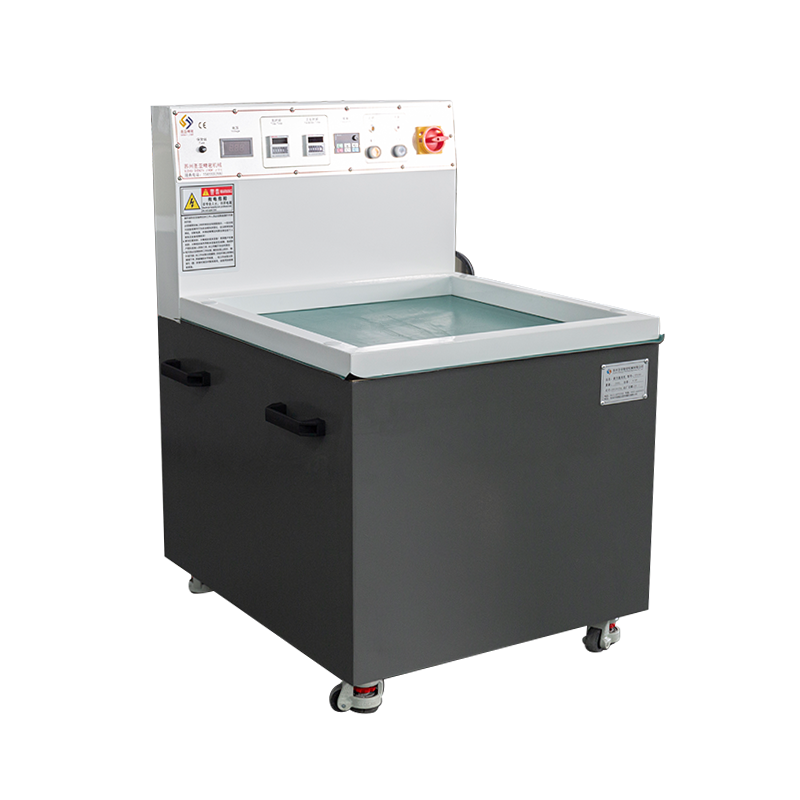

SY8180 Heavy-Duty/High-Capacity Precision Magnetic Deburring Polishing Machine

Process Capability & Production Positioning: The SY8180 is engineered as a high-throughput unit for precision machining lines, designed specifically to overcome efficiency bottlenecks in small-batch processing. While maintaining high standards for precision deburring, internal cavity cleaning, and surface finishing, it significantly enhances single-batch load capacity. This makes it the ideal mass-production model for surface treatment of die-castings, precision turned parts, and stamped components.
Powertrain & Magnetic Torque: Equipped with an industrial-grade 4KW high-power AC motor, this unit offers a significant power upgrade over standard models. Powered by an AC380V three-phase system, it generates a high-intensity alternating magnetic field. Even under a full load of 18kg, it delivers robust magnetic torque, driving magnetic pins to penetrate deep holes and blind corners, ensuring no loss of grinding intensity under heavy loads.

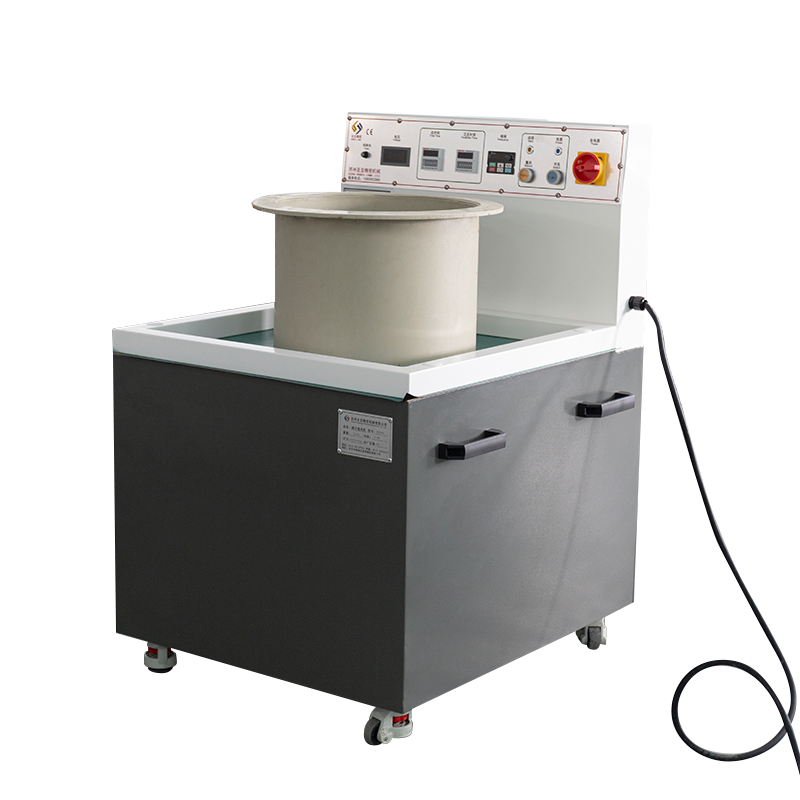

Capacity & Fluid Dynamics Optimization: The SY8180 increases the maximum processing capacity reference to 0-18kg, with an expanded grinding table measuring 620*620mm. This physical expansion accommodates large-diameter grinding containers (500mm or 550mm), which not only increases single-batch input but also provides ample fluid motion space for workpieces and pins. This effectively prevents workpiece impingement or uneven grinding caused by excessive loading density.
Process Control & Build Quality: The system integrates 0-60Hz variable frequency speed control with forward/reverse cycle logic, allowing operators to establish standardized operating procedures (SOPs) based on material hardness (e.g., stainless steel, aluminum, copper). Featuring a heavy-duty structural design with a net weight of approximately 210kg, the substantial chassis effectively dampens mechanical resonance during high-power operation, ensuring long-term precision and equipment durability.
Industrial Turnkey Configuration: Matching its high-capacity positioning, the SY8180 comes standard with an enhanced consumables package, including 6kg of SUS304 stainless steel magnetic pins and 50kg of specialized grinding fluid. Delivered with two large-capacity grinding containers and a complete separation system, this "plug-and-play" configuration enables enterprises to rapidly establish an efficient surface treatment process.

Contact Us
PREV：SY1080 Wide-Format/High-Capacity Industrial Magnetic Deburring Polishing MachineNEXT：SY8120 Standard Industrial Magnetic Deburring Polishing Machine
  • Specification
  • Application
  • Contact Us
Model
SY8180
Power Supply
AC 380V (50/60HZ), 16A
Motor Power
4KW
Equipment Dimension
840×820×1080mm
Grinding Table Size
620×620mm
Grinding Vessel Size
Cylinder with diameter 550mm or 500mm
Max Processing Capacity (Reference)
0-18KG
Processing Speed
0-60HZ
Operation Mode
Forward and reverse rotation
Machine Weight
Approx. 210KG


Model SY8180
Stainless Steel Magnetic Needles 6KG
 Grinding Fluid 50KG
 Grinding Vessels 2PCS
Separation Sieve 1PCS
Needle Separator 1PCS
 Operation Manual 1Copy

Magnetic Polishing Machine Model SY8180 is specially designed to deburr, polish, descale, remove tool marks, degrease and decontaminate the inner bores of precision hardware components.
