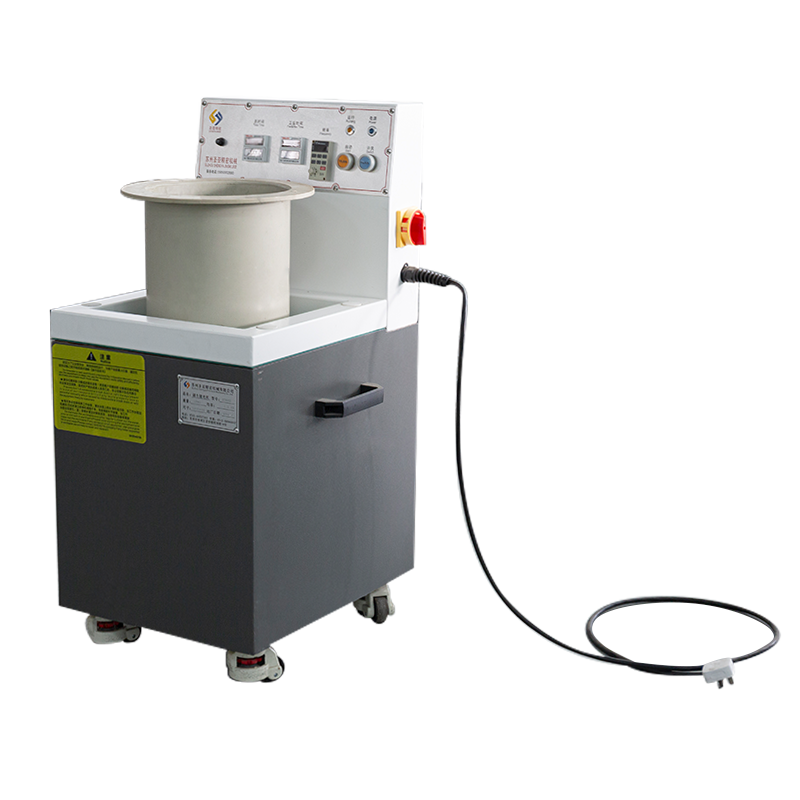

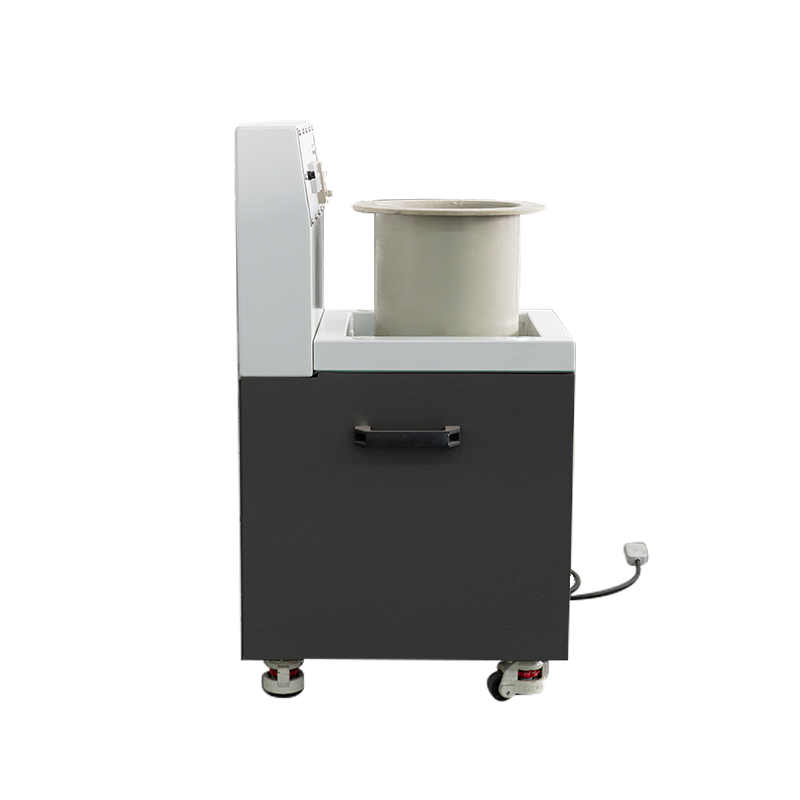

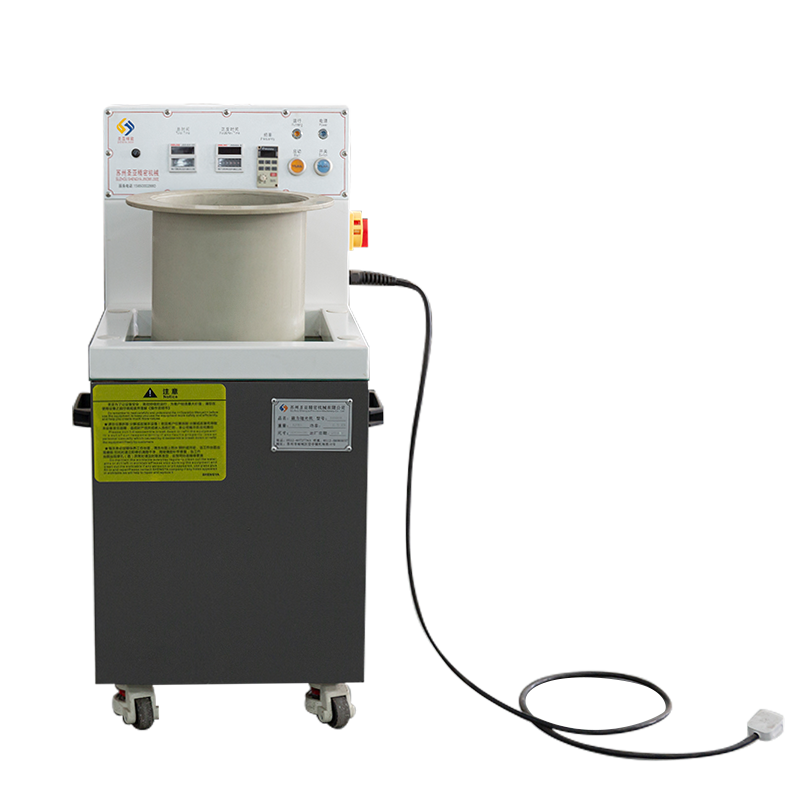

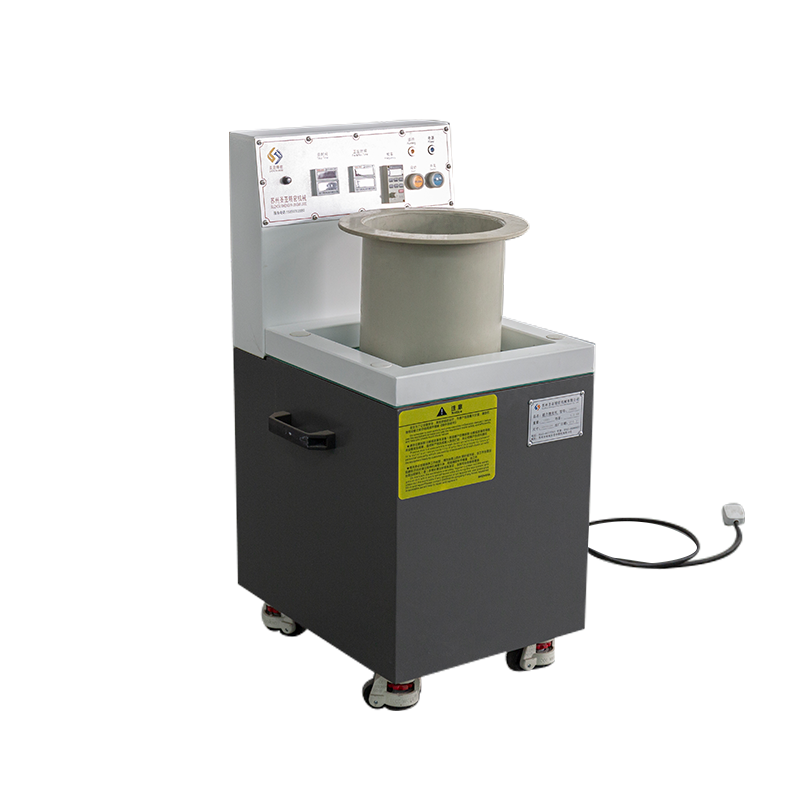

SY8080 Lab-Grade/Small Batch Precision Magnetic Deburring Polishing Machine
Core Process Capability: Engineered for the surface finishing of micro-precision components, the SY8080 efficiently addresses technical challenges such as internal deburring, crevice cleaning, and oxidation removal for non-ferromagnetic metals (e.g., medical devices, electronic parts). It significantly improves surface roughness (Ra) without compromising critical dimensional tolerances.
Load & Media Compatibility: Defined as a lightweight processing unit with a 0-10kg load capacity, it is ideal for prototyping (sampling) and small-batch production. The 420*420mm working table accommodates standard 300mm/350mm grinding tanks, facilitating rapid changeovers and reducing costs in high-mix, low-volume production scenarios.
Drive & Control System: Powered by a 2.2KW industrial AC motor (AC380V), it delivers high-torque magnetic output. The integrated 0-60Hz Variable Frequency Drive (VFD) allows operators to precisely match grinding kinetic energy to material hardness. The forward/reverse cycle logic eliminates directional shadowing, ensuring uniform treatment of complex geometries.

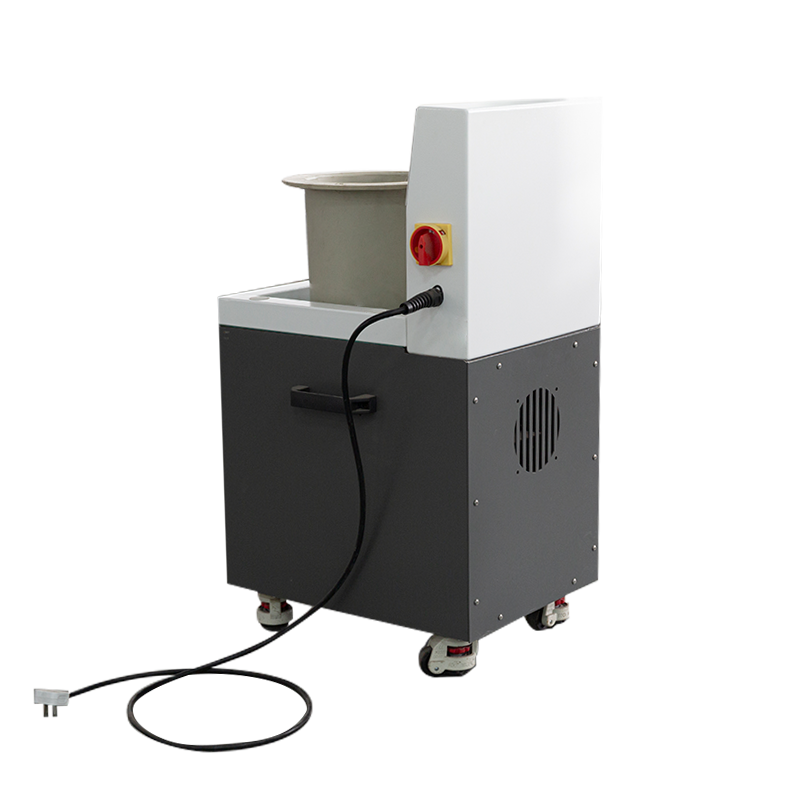

Physical Specifications: Featuring a compact vertical footprint (640*620*1080mm) and weighing approximately 150kg, this unit is easily integrated into existing precision machining cells or laboratory environments. Industrial casters allow for flexible layout adjustments within the workshop.
Turnkey Configuration: Delivered ready-to-run, the standard package includes 3kg of SUS304 magnetic pins, 25kg of grinding fluid, two grinding containers, and a separation system, enabling immediate production verification upon installation.
- Specification
- Application
- Contact Us
|
Model
|
SY8080
|
|
Power Supply
|
AC 380V (50/60HZ), 16A
|
|
Motor Power
|
2.2KW
|
|
Equipment Dimension
|
640×620×1080mm
|
|
Grinding Table Size
|
420×420mm
|
|
Grinding Vessel Size
|
Cylinder with diameter 350mm or 300mm
|
|
Max Processing Capacity (Reference)
|
0-10KG
|
|
Processing Speed
|
0-60HZ
|
|
Operation Mode
|
Forward and reverse rotation
|
|
Machine Weight
|
Approx. 150KG
|
| Model | SY8080 |
| Stainless Steel Magnetic Needles | 3KG |
| Grinding Fluid | 25KG |
| Grinding Vessels | 2PCS |
| Separation Sieve | 1PCS |
| Needle Separator | 1PCS |
| Operation Manual | 1 Copy |
Magnetic Polishing Machine Model SY8080 is specially designed to solve problems such as deburring, polishing, descaling, removing tool marks, degreasing and decontamination for the inner holes of precision hardware parts.
