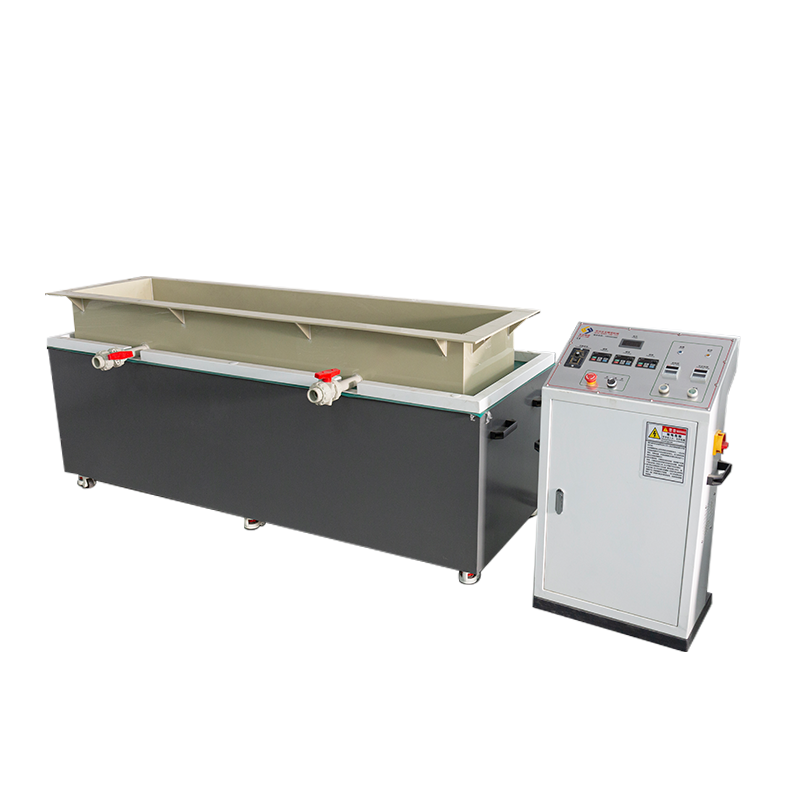

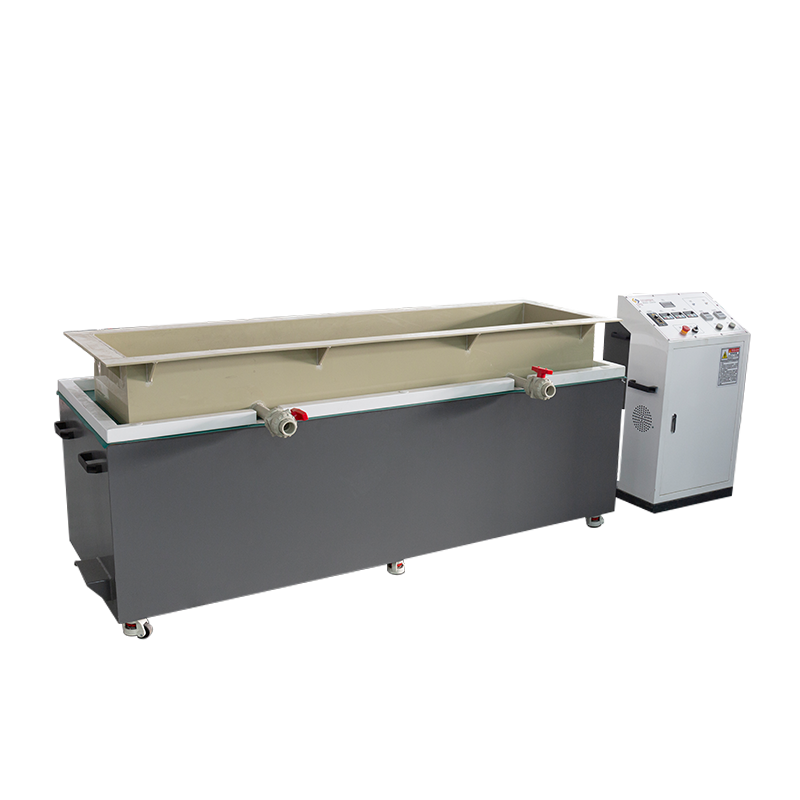

SY1800 Dual-Drive Heavy-Duty / Extra-Long Magnetic Deburring Polishing Machine

Home / Products / Magnetic Deburring Polishing Machine / SY1800 Dual-Drive Heavy-Duty / Extra-Long Magnetic Deburring Polishing Machine
  • SY1800 Dual-Drive Heavy-Duty / Extra-Long Magnetic Deburring Polishing Machine
  • SY1800 Dual-Drive Heavy-Duty / Extra-Long Magnetic Deburring Polishing Machine
  • SY1800 Dual-Drive Heavy-Duty / Extra-Long Magnetic Deburring Polishing Machine

SY1800 Dual-Drive Heavy-Duty / Extra-Long Magnetic Deburring Polishing Machine

Production Positioning & Dual-Drive Architecture: The SY1800 is the flagship unit in the series, featuring a dual-powertrain design engineered for heavy-duty or extra-long precision components. The system is powered by two 4KW industrial-grade AC motors, creating a robust 8KW drive matrix. This synchronized dual-drive topology effectively resolves magnetic field unevenness often found in single-motor extra-long tanks. It ensures unattenuated, uniform magnetic torque output across the entire 1.6-meter span, even under a full load of 60kg.
Compound Motion Trajectory & Long-Axis: Processing Utilizing a "Magnetic Rotation + Linear Translation" compound motion logic, this unit is optimized for components around 1.5 meters in length, such as textile machinery shafts, large heat sink modules, and automotive piping. Driven by the dual motors, the high-energy magnetic field propels magnetic pin media within the massive 1600*500*250mm rectangular tank in high-frequency, long-stroke reciprocating motions. This dynamic superposition eliminates grinding dead zones and fluid stagnation points, achieving consistent process standards from internal deburring to mirror-finish polishing.
Expanded Capacity & Heavy-Duty Construction: The SY1800 features an expanded grinding table of 1700*620mm, lifting the maximum processing capacity reference to 0-60kg. To accommodate the high kinetic energy of the dual motors and heavy loads, the machine employs a reinforced heavy-duty structure, bringing the net weight to approximately 550kg. The substantial chassis provides superior static support for long-stroke translation and effectively dampens mechanical vibration during high-power operation. Paired with a split-design independent control cabinet, it ensures long-term electrical stability in harsh industrial environments.
Process Control & Industrial Volume Configuration: The system supports 0-60Hz variable frequency speed regulation, allowing operators to set precise rotational speeds and translation cycles based on material rheology (e.g., titanium alloys, stainless steel, aluminum). As an industrial mass-production model, the SY1800 adheres to high-standard delivery configurations: it comes with 8kg of SUS304 stainless steel magnetic pins and a large-capacity supply of 100kg grinding fluid. The standard package also includes 3 extra-long grinding containers, 1 separation sieve, and 1 pin separator, offering exceptional changeover flexibility and ensuring immediate readiness for large-scale continuous production.

Contact Us
PREV：SY2200 Dual-Drive Mega-Format / 2-Meter Class Magnetic Deburring Polishing MachineNEXT：SY1400 Horizontal Reciprocating / Extended-Bed Industrial Magnetic Deburring Polishing Machine
  • Specification
  • Application
  • Contact Us
Model
SY1800
Power Supply
AC 380V (50/60HZ), 32A
Motor Power
4KW×2
Equipment Dimension
1800×720×730mm
Control Cabinet Dimension
550×350×980mm
Grinding Table Size
1700×620mm
Grinding Vessel Size
1600×500×250mm
Max Processing Capacity (Reference)
0-60KG
Processing Speed
0-60HZ
Operation Mode
Forward and reverse rotation with translation
Machine Weight
Approx. 550KG


Model SY1800
Stainless Steel Magnetic Needles 8KG
Grinding Fluid 100KG
Grinding Vessels 3PCS
Separation Sieve 1PCS
Needle Separator 1PCS
Operation Manual 1Copy

Magnetic Polishing Machine Model SY1800 is specially designed to deburr, polish, descale, remove tool marks, degrease and decontaminate the inner bores of precision hardware components.
