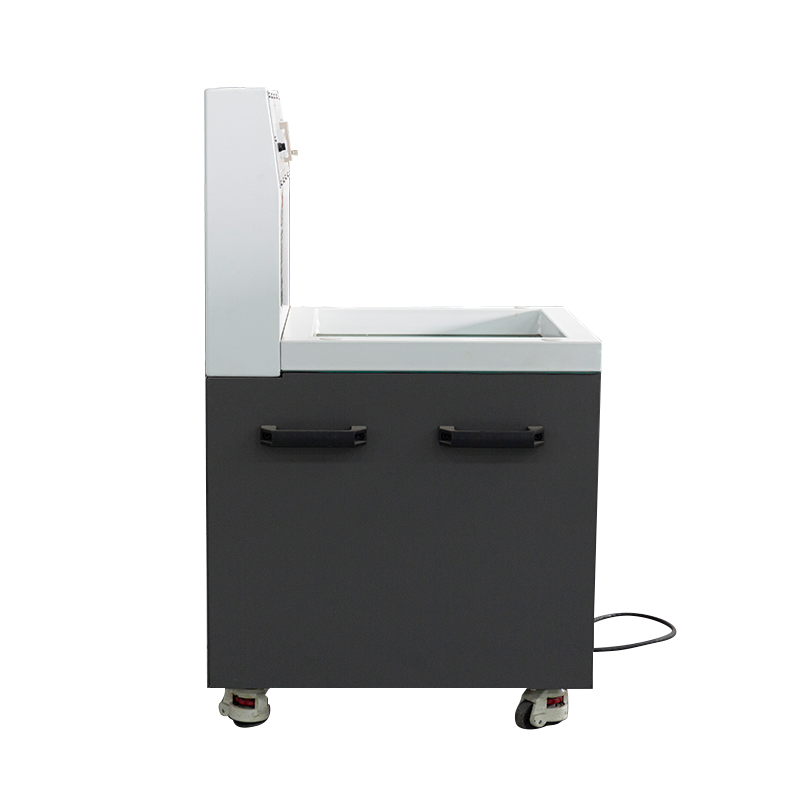

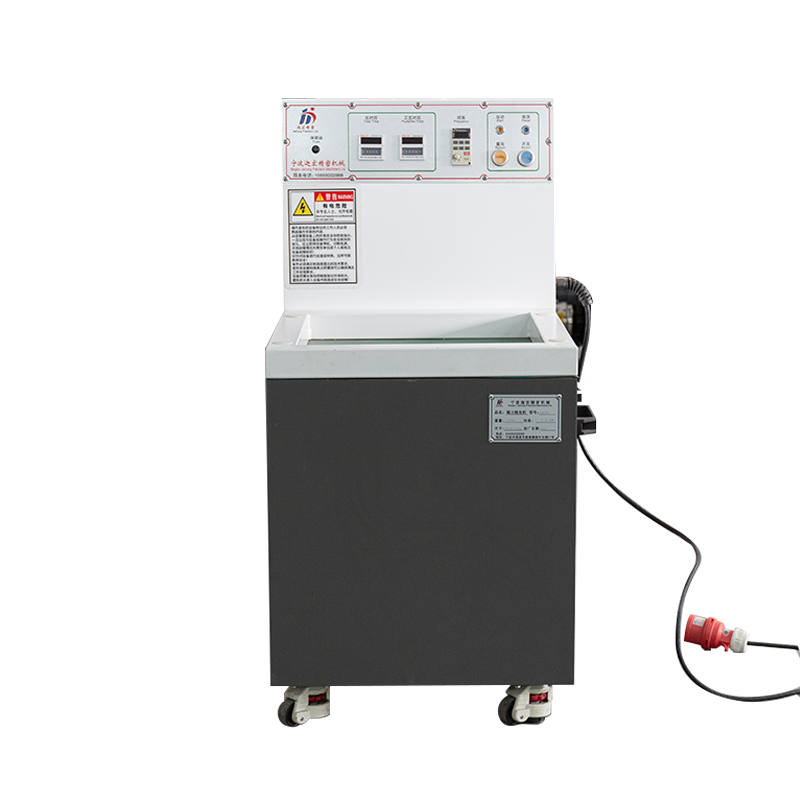

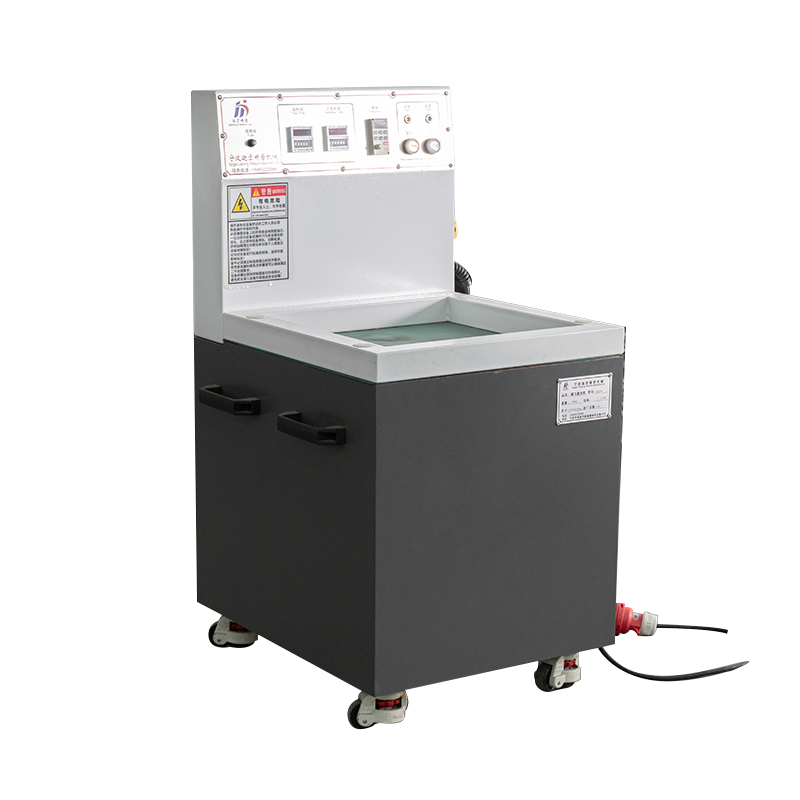

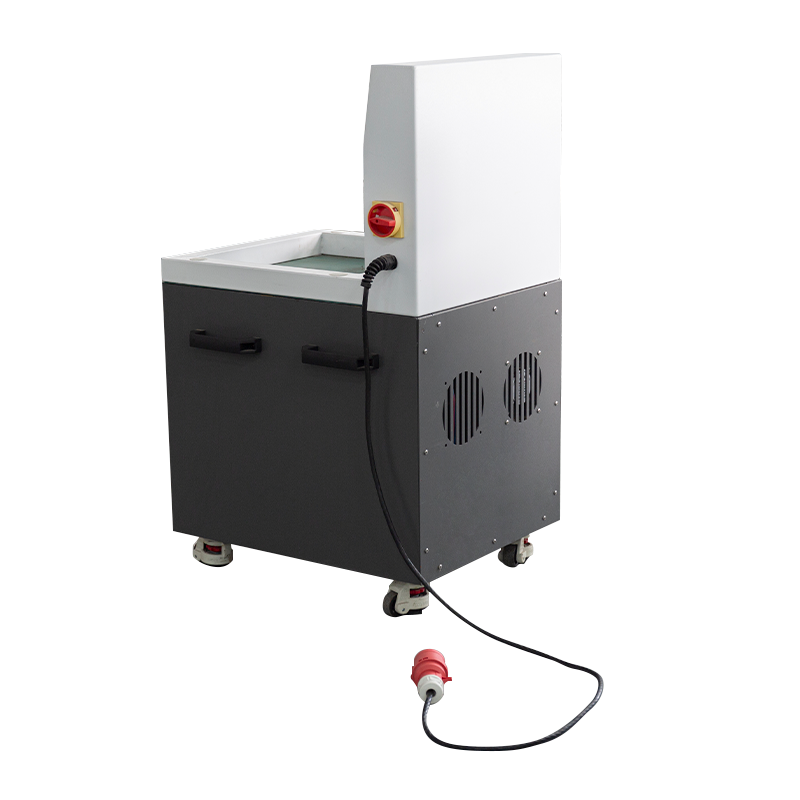

SY8120 Standard Industrial Magnetic Deburring Polishing Machine

Production Positioning & Efficiency: The SY8120 serves as the production workhorse for precision machining lines, designed for medium-batch continuous operation. With enhanced magnetic field penetration, it excels in deep-hole deburring and scale removal under high-density loading conditions, significantly reducing cycle times for medium-sized hardware components.
Powertrain Upgrade: Upgraded to a 3KW high-power motor, this unit maintains robust magnetic drive capability even under full load, preventing "dead zones" caused by workpiece stacking. The AC380V power input ensures output stability during extended shifts, making it suitable for intensive industrial environments.
Throughput & Expansion: The processing capacity is increased to 13kg, with an expanded 520*520mm grinding table. This upgrade supports larger 400mm/450mm diameter tanks, increasing single-batch throughput and improving the fluid tumbling trajectory of workpieces for superior uniformity.
Process Logic Control: The intelligent control panel features 0-60Hz stepless speed regulation and timed forward/reverse cycles. Operators can set standardized parameters based on process cards, enabling precise control over machining mark removal and edge rounding, reducing reliance on manual operator skill.
Industrial Design: With dimensions of 740*720*1080mm and a net weight of 180kg, the heavier chassis design effectively dampens resonance during high-frequency operation, extending component lifespan. Its compact structure facilitates easy maintenance and aligns with lean manufacturing layout requirements.
Standard Package: The unit comes with an upgraded consumables kit: 4kg of precision stainless steel magnetic pins and 50kg of grinding fluid. A complete production set (dual tanks, separation sieve, pin separator) is included to ensure immediate mass-production capability.

Contact Us
PREV：SY8180 Heavy-Duty/High-Capacity Precision Magnetic Deburring Polishing MachineNEXT：SY8080 Lab-Grade/Small Batch Precision Magnetic Deburring Polishing Machine
  • Specification
  • Application
  • Contact Us
Model
SY8120
Power Supply
AC 380V (50/60HZ), 16A
Motor Power
3KW
Equipment Dimension
740×720×1080mm
Grinding Table Size
520×520mm
Grinding Vessel Size
Cylinder with diameter 450mm or 400mm
Max Processing Capacity (Reference)
0-13KG
Processing Speed
0-60HZ
Operation Mode
Forward and reverse rotation
Machine Weight
Approx. 180KG


Model SY8120
Stainless Steel Magnetic Needles 4KG
 Grinding Fluid 50KG
 Grinding Vessels 2PCS
Separation Sieve 1PCS
Needle Separator 1PCS
 Operation Manual 1Copy

Magnetic Polishing Machine Model SY8120 is specially designed to deburr, polish, descale, remove tool marks, degrease and decontaminate the inner holes of precision hardware parts.
