SY1080 Wide-Format/High-Capacity Industrial Magnetic Deburring Polishing Machine

Home / Products / Magnetic Deburring Polishing Machine / SY1080 Wide-Format/High-Capacity Industrial Magnetic Deburring Polishing Machine
  • SY1080 Wide-Format/High-Capacity Industrial Magnetic Deburring Polishing Machine
  • SY1080 Wide-Format/High-Capacity Industrial Magnetic Deburring Polishing Machine
  • SY1080 Wide-Format/High-Capacity Industrial Magnetic Deburring Polishing Machine
  • SY1080 Wide-Format/High-Capacity Industrial Magnetic Deburring Polishing Machine
  • SY1080 Wide-Format/High-Capacity Industrial Magnetic Deburring Polishing Machine
  • SY1080 Wide-Format/High-Capacity Industrial Magnetic Deburring Polishing Machine

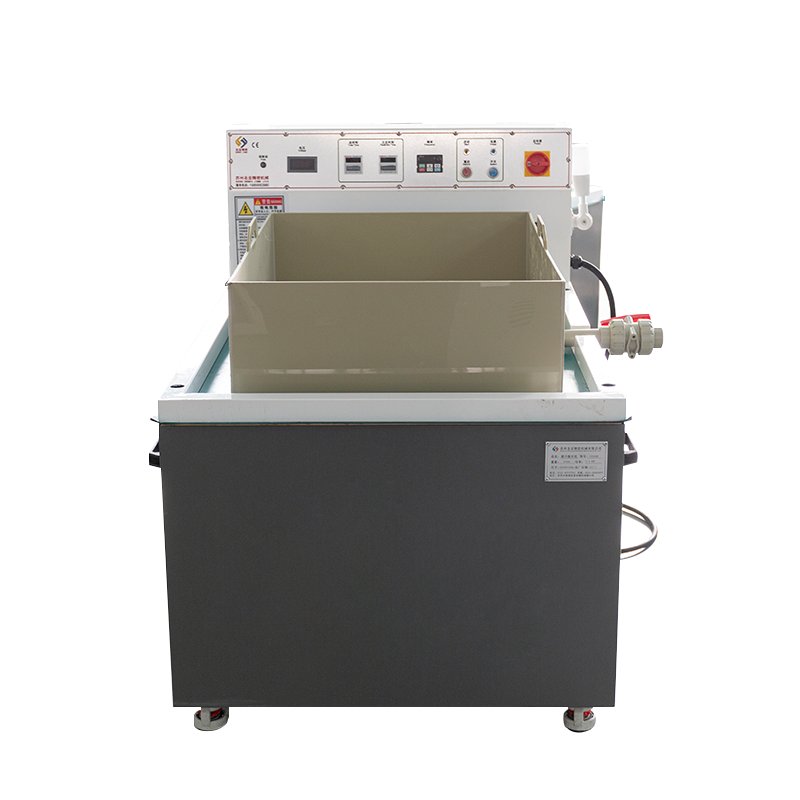

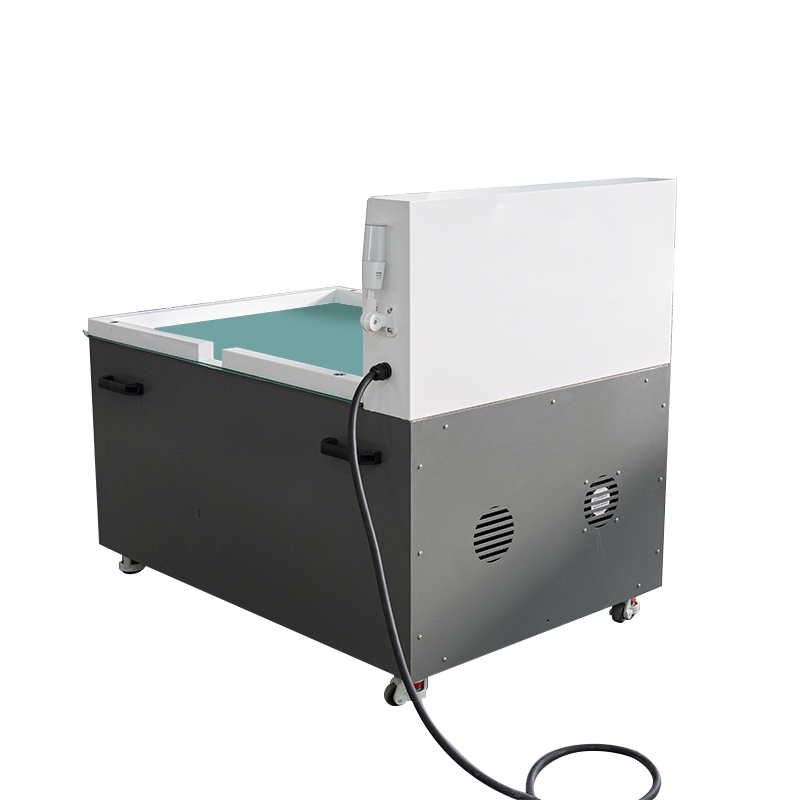

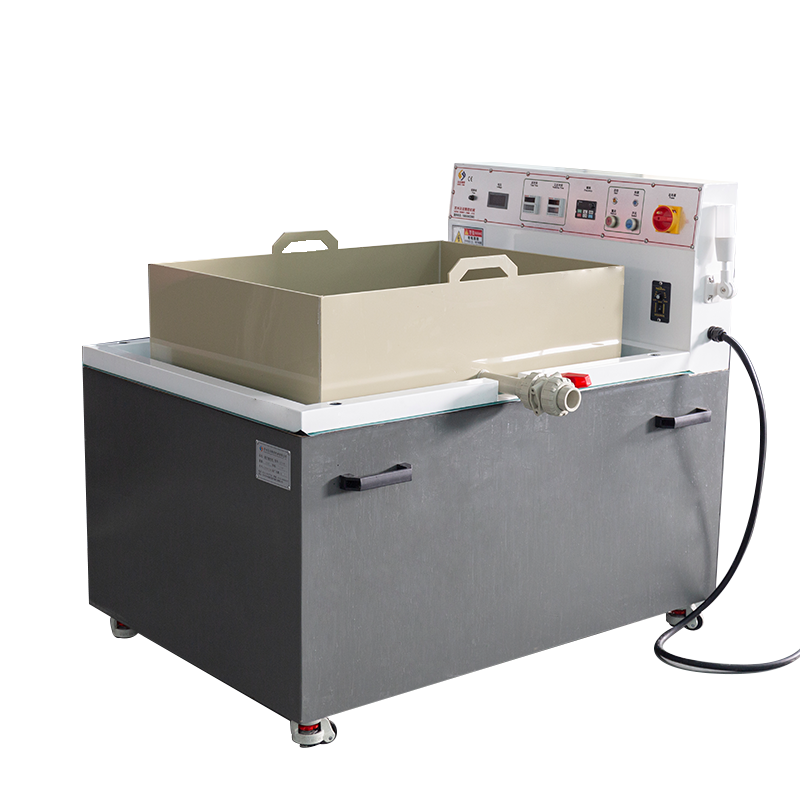

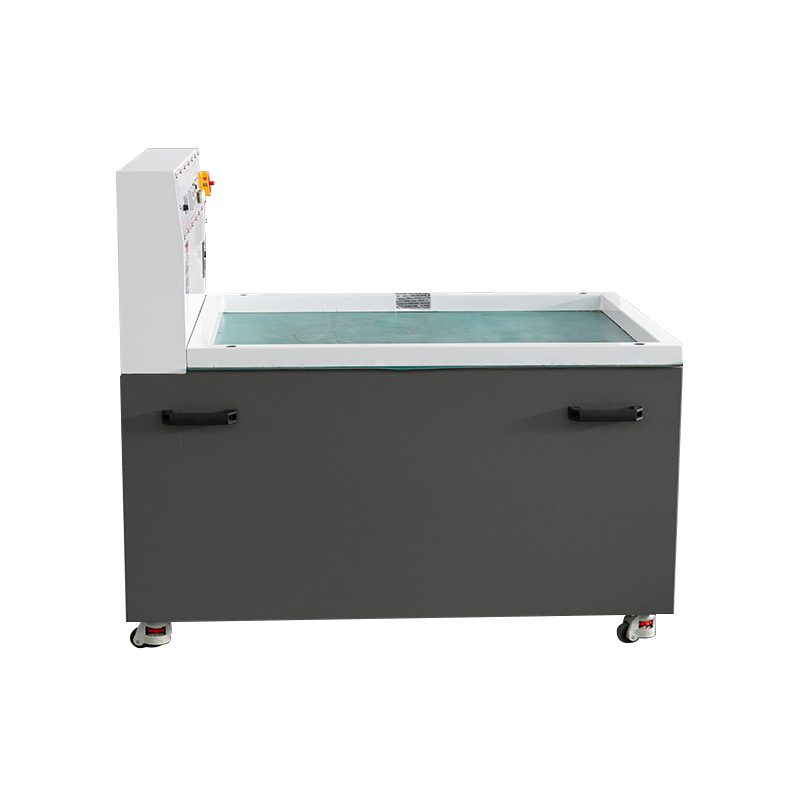

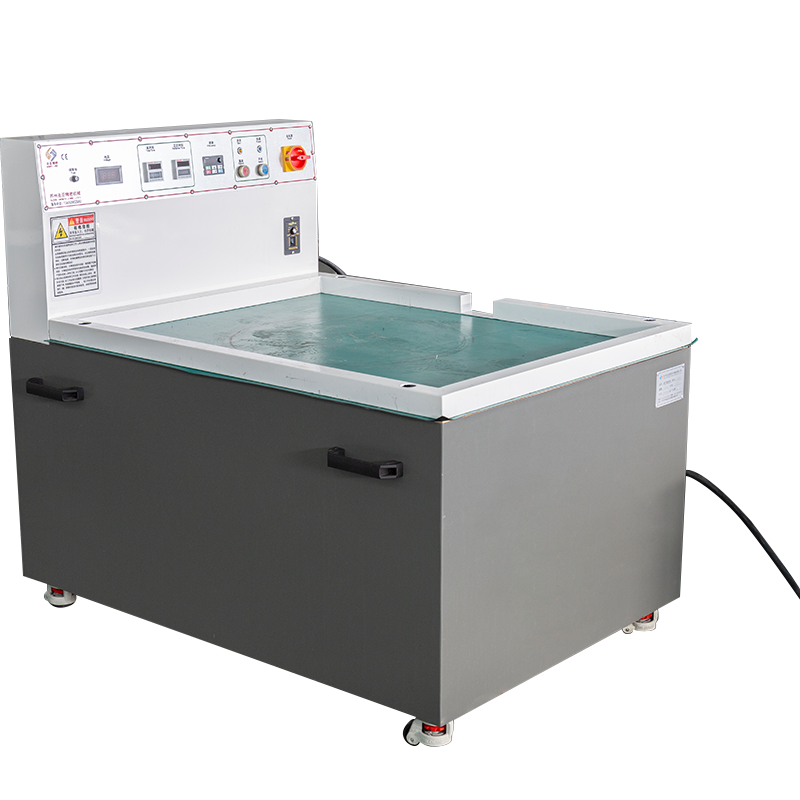

SY1080 Wide-Format/High-Capacity Industrial Magnetic Deburring Polishing Machine

Production Versatility & Wide-Format Adaptability: The SY1080 is an industrial-grade unit engineered to address surface finishing challenges for medium-to-large batches and irregularly shaped workpieces. Distinguishing itself from entry-level models, it overcomes the limitations of circular rotation. With exceptional capabilities in internal deburring, scale removal, and surface finishing, it is particularly well-suited for processing elongated hardware (such as exhaust pipes and heat sinks) or large volumes of small precision parts. It effectively solves the technical issue of tumbling restriction for long parts in traditional round containers, making it a critical asset for enhancing production line versatility.
Power Drive & Magnetic Efficiency: The system is powered by a 4KW industrial-grade high-power AC motor connected to an AC380V three-phase supply, creating a robust magnetic drive system. Facing a maximum design load of 30kg, this powertrain delivers sustained, high-torque magnetic output. This ensures that the magnetic pin media maintains high-speed, penetrating, irregular motion even within a fully loaded tank, achieving uniform grinding results across deep holes and complex internal cavities.
Flexible Tank Configuration: The SY1080 features an expanded grinding table measuring 850620mm, a wide-format design that grants the equipment high configuration flexibility. It supports not only standard 500mm diameter round tanks but is also compatible with large 700500mm square grinding tanks. This dual-mode compatibility allows users to switch containers based on workpiece geometry (clustered or elongated), maximizing the effective magnetic field area and significantly improving the yield rate per batch.
Structural Rigidity & Process Control: To accommodate heavier loads and a wider chassis, the equipment employs a reinforced base structure, bringing the net weight to approximately 270kg. This high-rigidity design effectively absorbs the unbalanced inertial forces generated by fluid motion in square tanks, ensuring absolute stability during 0-60Hz wide-band speed regulation and forward/reverse cycle operations. This substantially reduces maintenance frequency and extends equipment lifespan.
Mass-Production Standard Provisioning: The unit is delivered strictly according to industrial mass-production standards, including an enhanced consumables package with 8kg of SUS304 stainless steel magnetic pins and 50kg of specialized grinding fluid. The standard configuration also includes two grinding containers (matchable as square/round based on requirements), one separation sieve, and one pin separator, ensuring the equipment is ready for high-load production immediately upon installation.

Contact Us
PREV：SY1200 Horizontal Reciprocating/Long-Bed Industrial Magnetic Deburring Polishing MachineNEXT：SY8180 Heavy-Duty/High-Capacity Precision Magnetic Deburring Polishing Machine
  • Specification
  • Application
  • Contact Us
Model
SY1080
Power Supply
AC 380V (50/60HZ), 16A
Motor Power
4KW
Equipment Dimension
1100×820×1080mm
Grinding Table Size
850×620mm
Square Groove Grinding Vessel Size
700×500mm
Cylindrical Grinding Vessel Size
Cylinder with diameter 500mm
Max Processing Capacity (Reference)
0-30KG
Processing Speed
0-60HZ
Operation Mode
Forward and reverse rotation
Machine Weight
Approx. 270KG


Model
SY1080
Stainless Steel Magnetic Needles
8KG
Grinding Fluid
50KG
Grinding Vessels
2PCS
Separation Sieve
1PCS
Needle Separator
1PCS
Operation Manual
1 Copy

Magnetic Polishing Machine Model SY1080 is specially designed to deburr, polish, descale, remove tool marks, degrease and decontaminate the inner bores of precision hardware components.
