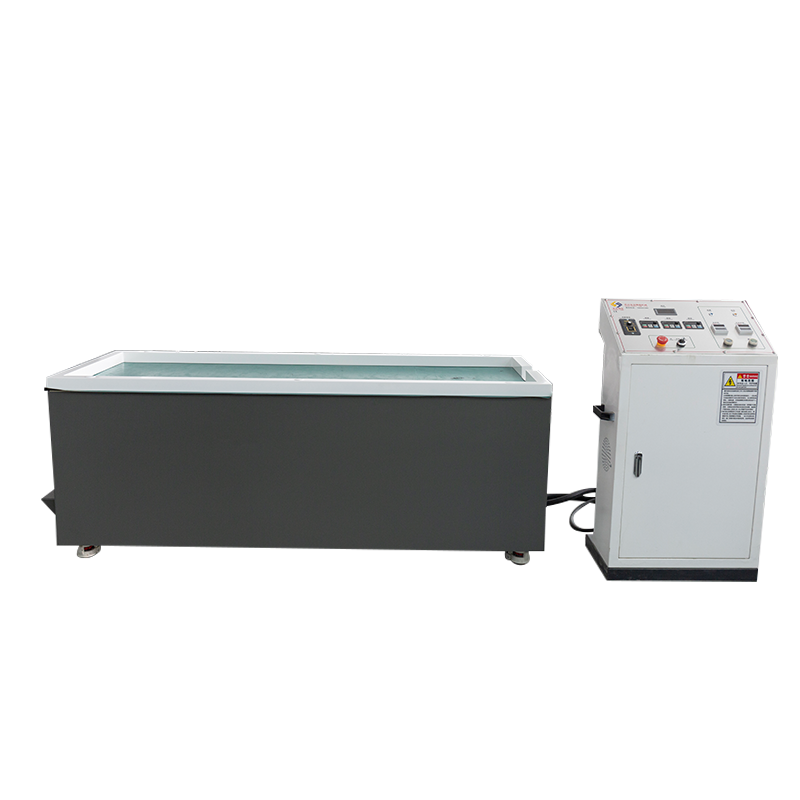

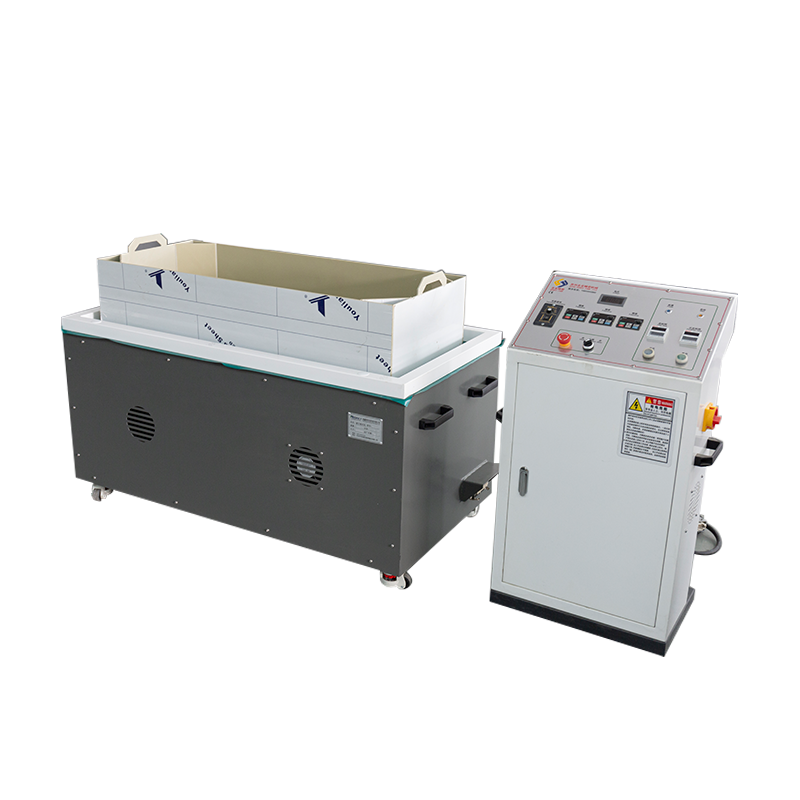

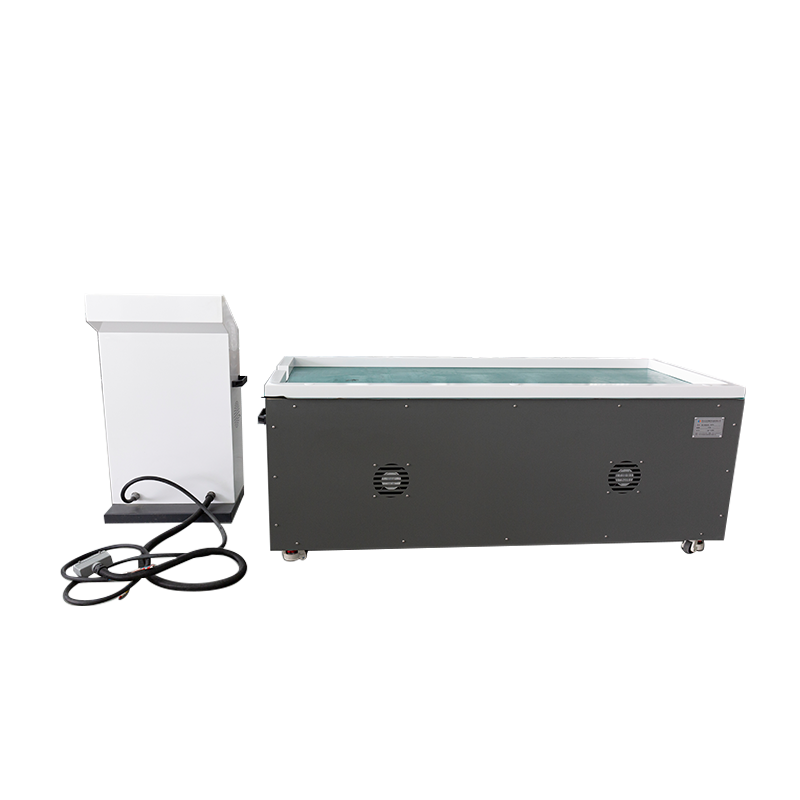

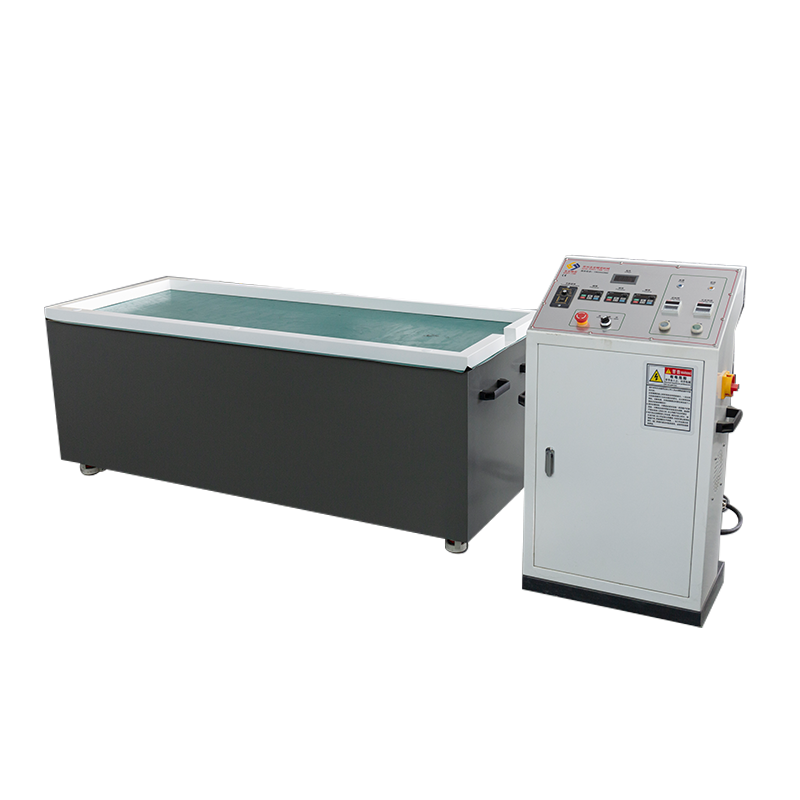

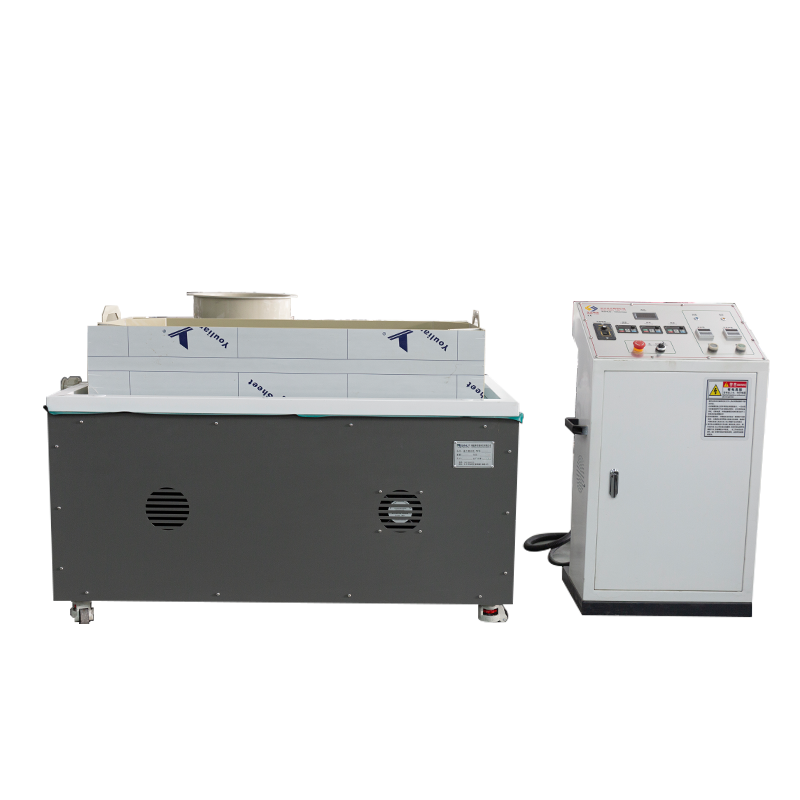

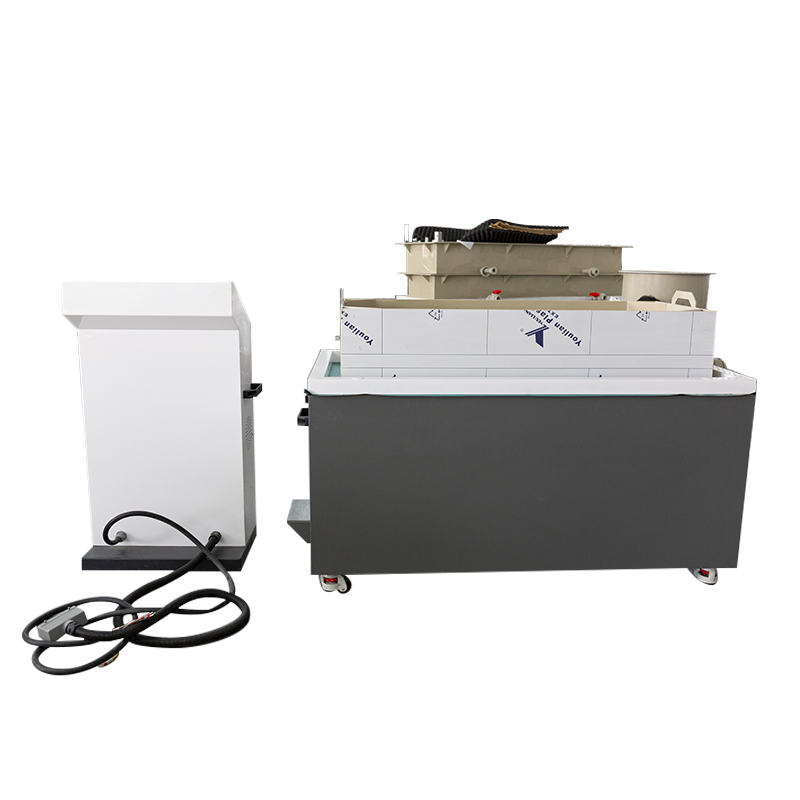

SY1200 Horizontal Reciprocating/Long-Bed Industrial Magnetic Deburring Polishing Machine

Positioning & Translation Technology: The SY1200 is the first in the series to feature a compound motion trajectory combining "Magnetic Rotation + Reciprocating Translation." It is specifically engineered to solve surface finishing challenges for long-shaft, tubular, and array-type components (e.g., precision guide rails, medical catheters, elongated heat sinks). The unique translation mechanism drives the magnetic field in a linear reciprocating motion across the bed, eliminating grinding dead zones or "zebra patterns" often seen in static magnetic fields, ensuring consistent roughness (Ra) along the entire workpiece length.
Capacity & Bed Configuration: Featuring an open horizontal bed design, the unit offers a working table of 1100*620mm and comes standard with a large rectangular grinding tank measuring 1000*500*250mm. The maximum processing capacity is increased to a reference value of 0-35kg. This aspect ratio allows for the lay-flat processing of workpieces nearly 1 meter in length, preventing workpiece entanglement and significantly improving volumetric efficiency per batch.
Split Architecture & Power: To adapt to demanding industrial environments, the SY1200 adopts a Split Mechanical-Electrical Architecture. The main machine measures 1200*720*730mm, while precision control units are housed in a separate cabinet (550350980mm). This design effectively isolates electrical components from high-frequency mechanical vibration and fluid splashes. Powered by a 4KW industrial motor and an AC380V three-phase supply, it provides ample torque for compound motion under heavy loads.
Process Control & Stability: The system supports 0-60Hz variable frequency speed regulation with integrated control for forward/reverse rotation and translation. With a net weight of 380kg, the heavy-duty bed provides exceptional rigidity for long-stroke translation, ensuring dynamic balance even at a full 35kg load and extending the lifespan of mechanical transmission components.
Standard Provisioning: Delivered strictly to industrial standards, the package includes 8kg of SUS304 stainless steel magnetic pins and 50kg of specialized grinding fluid. The standard configuration includes 2 rectangular grinding containers, 1 separation sieve, and 1 pin separator, enabling immediate mass production of elongated parts upon installation.

Contact Us
PREV：SY1400 Horizontal Reciprocating / Extended-Bed Industrial Magnetic Deburring Polishing MachineNEXT：SY1080 Wide-Format/High-Capacity Industrial Magnetic Deburring Polishing Machine
  • Specification
  • Application
  • Contact Us
Model SY1200
Power Supply AC 380V (50/60HZ), 16A
Motor Power 4KW
Equipment Dimension 1200×720×730mm
Control Cabinet Dimension 550×350×980mm
Grinding Table Size 1100×620mm
Grinding Vessel Size 1000×500×250mm
Max Processing Capacity (Reference) 0-35KG
Processing Speed 0-60HZ
Operation Mode Forward and reverse rotation with translation
Machine Weight Approx. 380KG

Model SY1200
Stainless Steel Magnetic Needles 8KG
Grinding Fluid 50KG
Grinding Vessels 2PCS
Separation Sieve 1PCS
Needle Separator 1PCS
Operation Manual 1 Copy

Magnetic Polishing Machine Model SY1200 is specially designed to deburr, polish, descale, remove tool marks, degrease and decontaminate the inner bores of precision hardware components.
